Retail dairy container and lid tooling

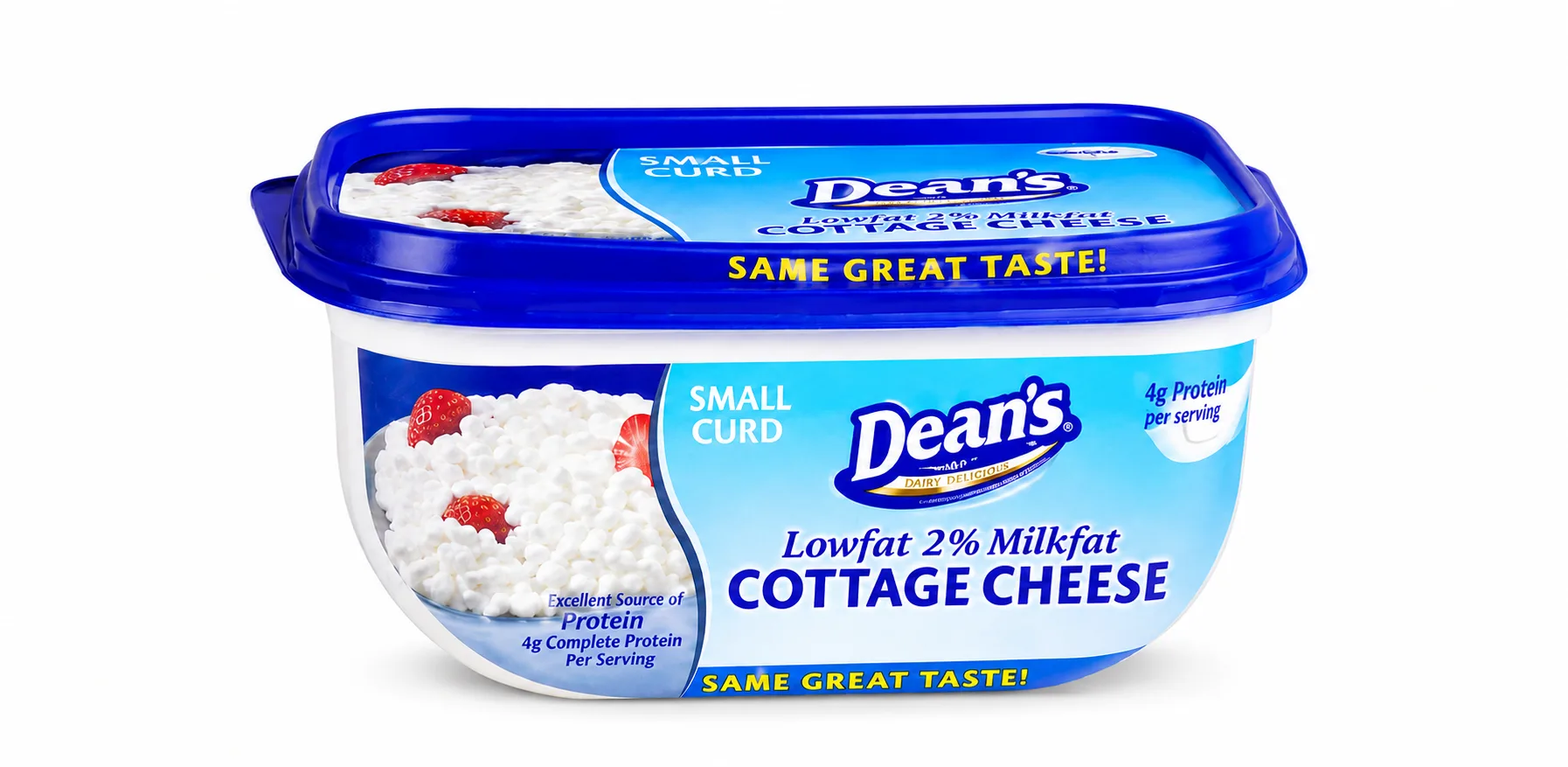

Hengqi develops cheese box moulds around the actual food-packaging format: round or rectangular container, matching lid, IML artwork, sealing requirement, filling method and shelf presentation. These inputs guide the cavity layout, hot runner, cooling and acceptance plan.
Typical product
Round or rectangular cheese and dairy container
Decoration
IML or plain surface according to retail format
Cavity direction

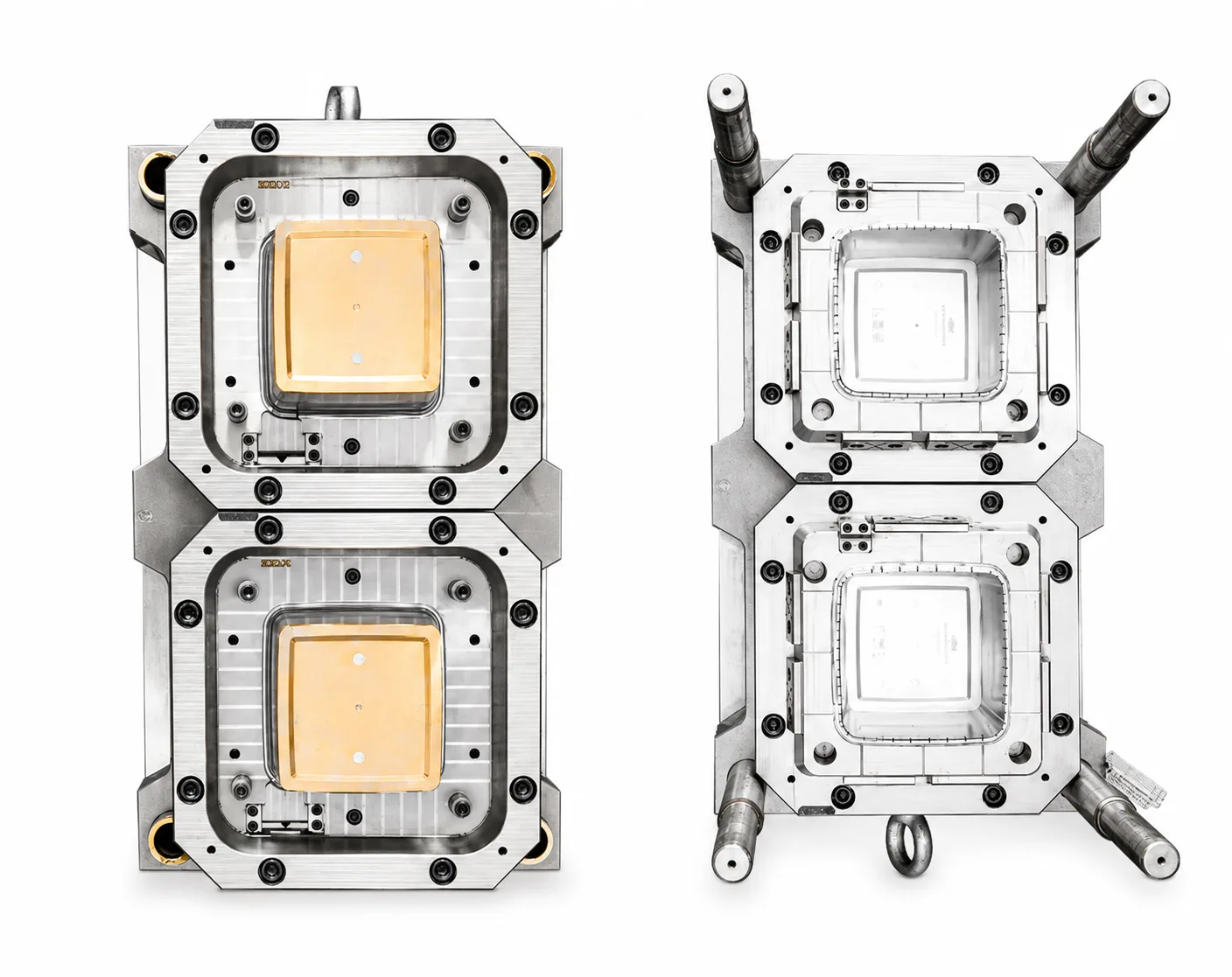

2–4 cavities after size and output review
Key interfaces
Lid closure, sealing area, stacking and label surface
Material
Food-grade PP or buyer-specified resin
Customization
Capacity, rim, tamper feature, texture and artwork area
Suitable buyer applications
Processed cheese and dairy packaging producers
Retail food-container manufacturers
Brands moving from adhesive labels to IML
Packaging buyers developing matching box and lid sets
03 / Visual engineering story
Each stage below pairs the engineering decision with a real product, tooling or factory image. This makes it easier to understand what Hengqi will review and manufacture for the project.
01 / Mould-base preparation
Mould-base plates, cooling routes, locating features and ejector interfaces are prepared against the released box-and-lid design. Stable references protect the rim, wall and visible IML surfaces through later machining.
02 / Precision core geometry
Finishing allowance, rim geometry, bottom flatness and insert interfaces are controlled before assembly. This supports predictable label appearance and lid-fit correction during trial.
03 / Label & melt delivery

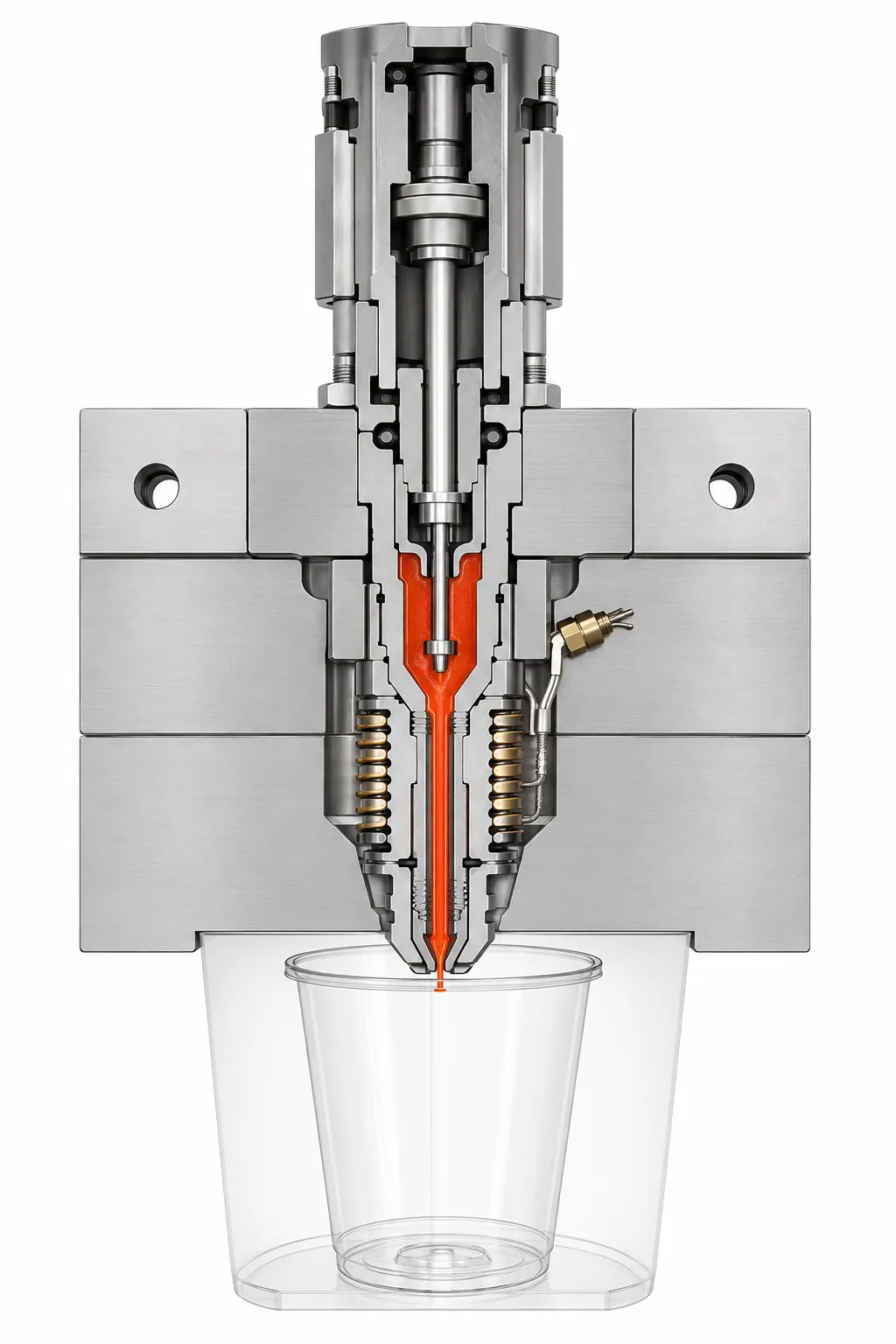

The hot runner, gate and cooling route are reviewed against the label seam, visible surface and product wall. This joins the appearance requirement with the practical production window.
04 / Packaging-line validation

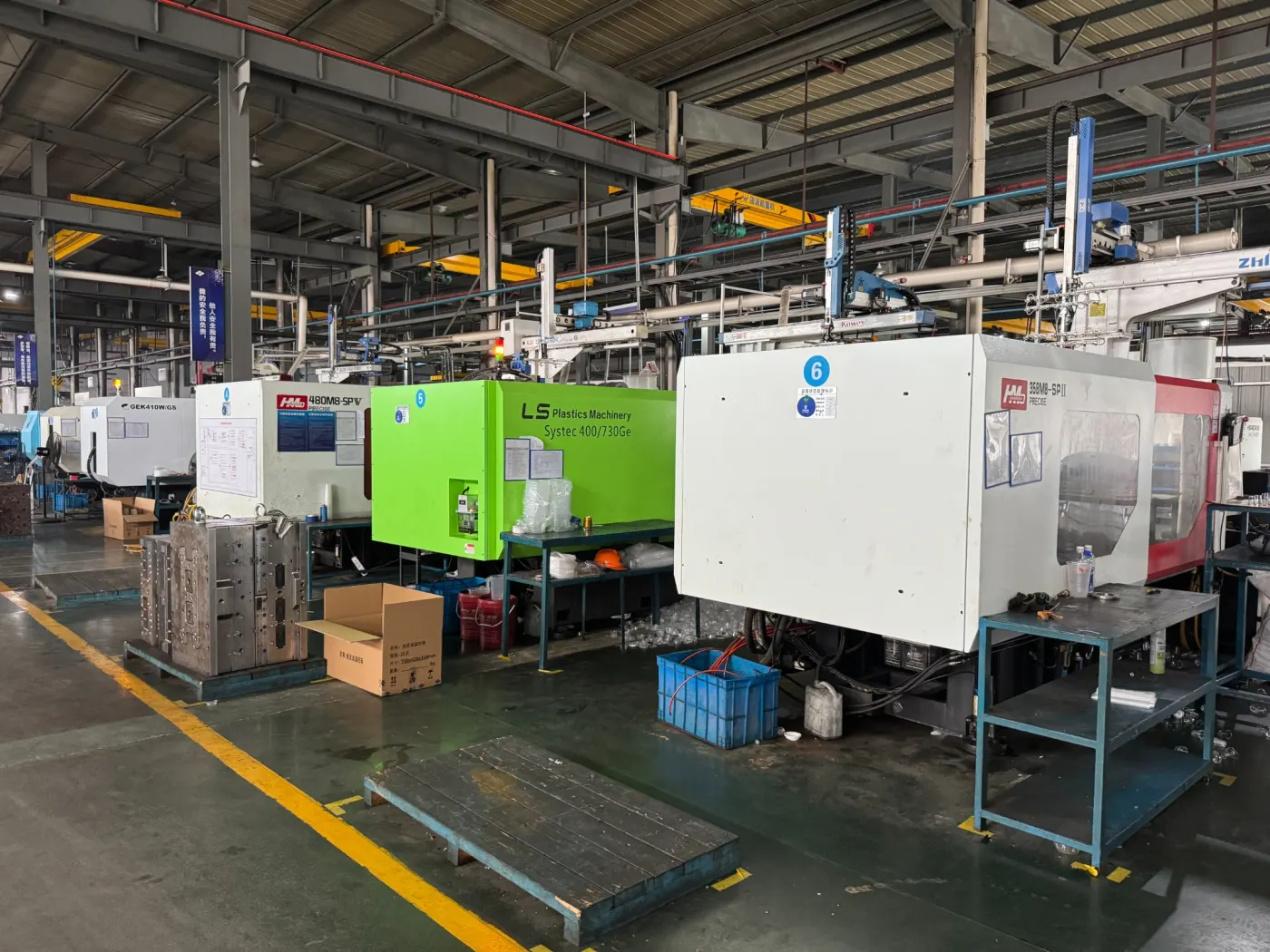

Trial acceptance covers label appearance, box dimensions, lid closure, flatness, de-nesting and cavity consistency. When line samples are available, the result can also be reviewed against the buyer's filling and secondary packaging conditions.
01 / Engineering review
A useful tooling proposal must connect the product, resin, machine, automation and output target. These review points make the quotation more specific and reduce correction loops after steel is ordered.
Artwork, label seam, visible surfaces and product draft are reviewed so the IML result supports retail presentation.
Container rim, lid groove, shrinkage and filling or transport conditions are reviewed as one functional interface.
Round or rectangular geometry, corners, ribs, bottom stiffness and wall distribution are matched to product weight and resin.
De-nesting, filling, lid placement, stacking and secondary packaging requirements influence the mould and product design.
Cooling consistency and release strategy are planned to protect flatness, label appearance and cycle stability.
Cavity count is confirmed from box size, shot weight, machine space, robot speed and required hourly output.
02 / Tooling evidence

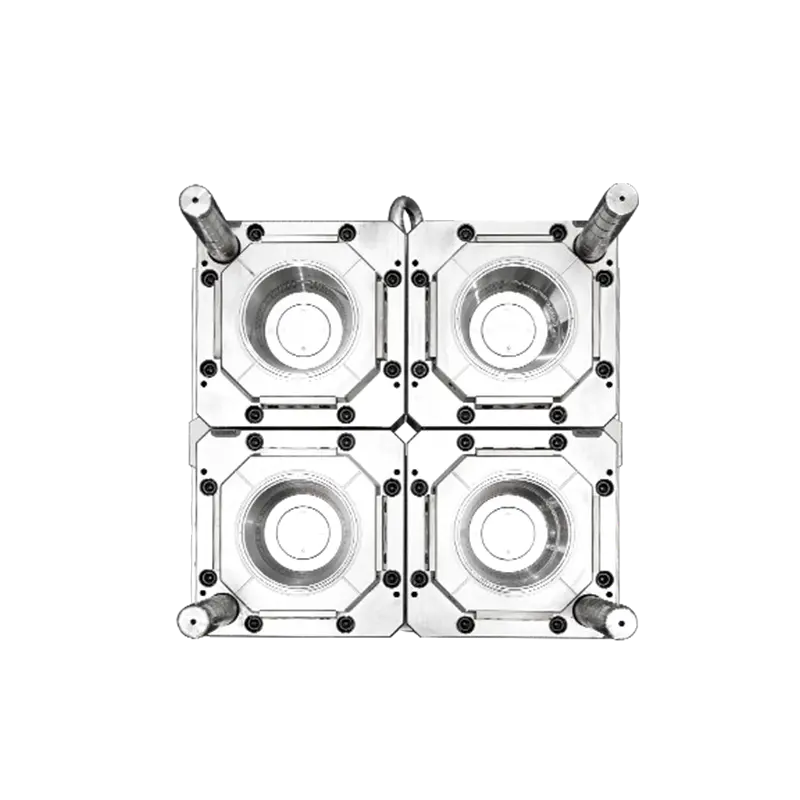

The images below are real Hengqi tooling or production references. They show the type of mould structure and manufacturing capability used for application review; the final tooling layout is customized to the actual product.
04 / Project workflow
The project route connects product approval, design, steel, machining, assembly and trial. Exact timing depends on mould complexity, cavity layout, steel and customer approval speed.
Confirm cheese product, box and lid, capacity, artwork, resin, filling line and acceptance needs.
Review rim, sealing, label area, wall, gate, cooling, ejection, cavity layout and robot access.
Machine, inspect and fit the core, cavity, inserts and assembly-critical interfaces.
Review label appearance, box dimensions, lid closure, sealing or tamper feature, stacking, line handling and stable production.
05 / Trial acceptance
Acceptance should reflect the product's actual job on the filling, packing or consumer-use line. Final criteria are confirmed with the buyer before trial.
Information needed for quotation
A drawing is best, but a clear sample photo and basic production information are enough for the first engineering review.
06 / Buyer questions
These answers provide a practical starting point. Final specifications are based on your drawing, samples, resin, machine and production targets.
Yes. This is recommended because rim shrinkage, closure force, sealing and stackability depend on the relationship between both parts.
Yes. Capacity, shelf format, filling method, label artwork, stacking and machine conditions guide the most practical product and tooling layout.
Provide the artwork, finished label dimensions, material, thickness, overlap or seam position and any special appearance requirement.
Review label appearance, box dimensions, lid fit, seal or tamper features, flatness, stacking, cavity balance, ejection and filling-line handling.
Yes. If the pack needs a tamper band, tear tab or first-open signal, Hengqi can review the feature together with lid fit, IML label area, ejection and stacking behavior.
