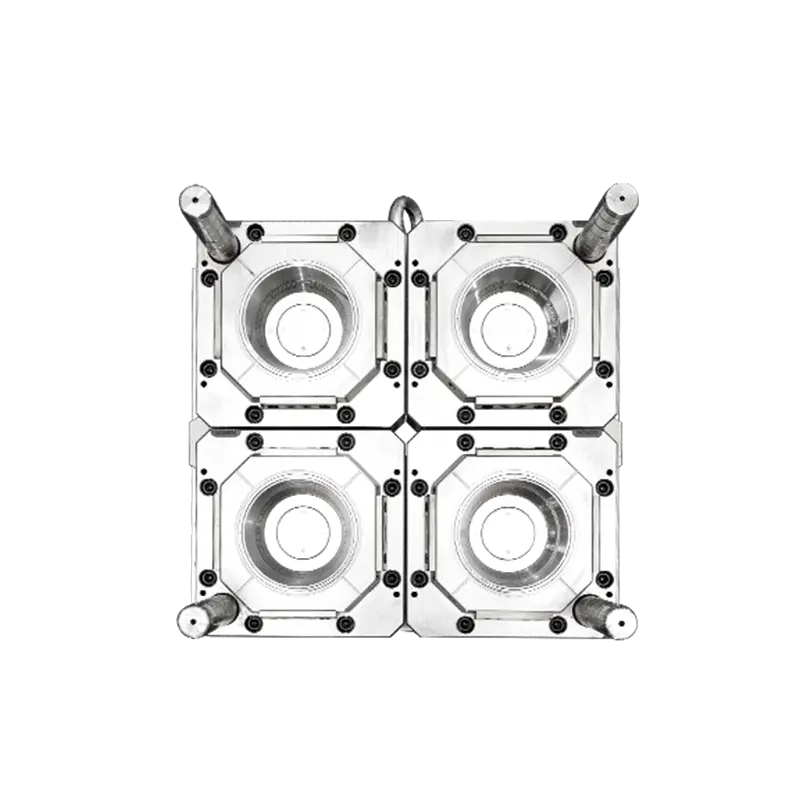

4CAV anti-theft round container mould for tamper-evident food packaging. The tooling supports in-mold labeling, is matched for 350T high-speed machines, and targets cycle time within 7.5 seconds with stable buckle and sealing performance.
Typical product
Tamper-evident round food container with anti-theft buckle structure
Machine matching
350T high-speed injection molding machine
Cycle time target
Within 7.5 seconds per shot, depending on resin and container weight
Cavity layout
4 cavities (expandable by project requirement)
Security feature
Integrated anti-theft buckle to reduce unauthorized reopening
Labeling compatibility
Supports in-mold labeling for branded retail packaging
Review the route from drawing and DFM through steel, trial and acceptance.
View evidenceSee how runner, gate and cavity balance are evaluated for repeatable filling.
View evidenceConnect product tolerances with CNC, EDM, inserts and component control.
View evidenceUnderstand dimensional verification and the inspection evidence available.
View evidenceHengqi proof system
Buyers do not evaluate the product concept alone. They also need evidence that the supplier can design, machine, measure, trial and support the mould through production acceptance.
60days
A controlled route from DFM and design approval through machining, trial, correction and acceptance.
3μm
Precision inspection supports dimensional verification for inserts, cores, cavities and critical interfaces.
60+
Engineering, machining, assembly, trial and project support are connected throughout the tooling programme.
300
Production and support resources cover mould development, manufacturing, inspection and after-sales response.
Hot runner and multi-cavity flow balance are reviewed around the real product and output target.
CNC, EDM, component fitting and CMM inspection are connected through the same manufacturing route.
Engineering support continues from drawing review and trial correction to production and after-sales response.
01 / Engineering review
Product geometry, resin, machine, cycle, lid or label and automation are reviewed as one system. The sections below explain the project-specific decisions buyers should confirm before steel is released.
Engineering checkpoint 01
This 4CAV round container mould is engineered for food packaging programs that require visible tamper evidence and stable lid engagement after filling.
The anti-theft buckle geometry helps brands protect product safety during distribution while keeping high-speed molding efficiency.
Engineering checkpoint 02
Container wall thickness, buckle release force and lid matching tolerance all influence cycle stability, scrap risk and sealing consistency.
Hengqi can adjust cavity balance, cooling channels and steel selection according to your line speed target, resin and packaging specification.
Engineering checkpoint 03
Before confirming tooling, buyers should define how the anti-theft clasp will be inspected after filling, whether the pack needs IML decoration, and how much opening force is acceptable for consumers.
Those decisions affect clasp geometry, lid fit, ejection method and tolerance strategy, so they should be locked before steel cutting rather than corrected during sampling.
02 / Tooling specification
These values describe the current reference project. Final steel, cavity count, runner, machine and cycle target are confirmed from the customer product and production plan.
Typical product
Tamper-evident round food container with anti-theft buckle structure
Machine matching
350T high-speed injection molding machine
Cycle time target
Within 7.5 seconds per shot, depending on resin and container weight
Cavity layout
4 cavities (expandable by project requirement)
Security feature
Integrated anti-theft buckle to reduce unauthorized reopening
Labeling compatibility
Supports in-mold labeling for branded retail packaging
Front and rear mold material
Domestic 2344/S136
Mold base material
P20/4Cr13/customer specified
Runner options
Needle valve or needle point hot runner
03 / Before shipment
The exact checklist is agreed for each project. These are the core records buyers normally use to confirm dimensions, function, output and correction closure before shipment.
View inspection processRecord the trial setup, resin, machine, process window, visible defects and required corrections.
Verify critical product and tooling dimensions against the approved drawing and agreed tolerances.
Check shot-to-shot consistency, thin-wall distribution and deformation risk across representative samples.
Review closure engagement, rim flatness, leak risk, opening force and stacking where the product requires it.
Confirm the practical cycle target under suitable resin, cooling, machine and automation conditions.
Provide agreed samples, trial video, inspection results and correction records for customer confirmation.
04 / Quotation checklist
A drawing or sample is the starting point. Machine, resin, output, closure and acceptance details allow Hengqi to review cavity layout, steel, runner, cooling and automation with fewer assumptions.
Product drawing or physical sample
Capacity, dimensions and target part weight
Resin grade and food-contact requirement
Target cavity number and annual output
Injection machine model and tonnage
Expected cycle time and automation plan
Matching lid, label or sealing requirement
Acceptance standard and delivery schedule
Send your drawing, sample photos and production target. Hengqi will review the project scope before preparing the quotation.
Start WhatsApp review Send formal inquiry05 / Buyer questions
It forms a tamper-evident buckle structure that helps show whether the container has been opened after packaging.
Yes. The design supports in-mold labeling and can be configured for brand-specific container appearance requirements.
Provide container and lid drawings or samples, target output, resin grade, machine specifications and required tamper-evidence performance.
Yes. Hengqi can tune clasp geometry and tolerance targets around the required consumer opening feel, sealing performance and tamper-evidence standard.
Sampling should verify lid fit, buckle break performance, opening force, stack height, IML label clearance if used and whether the tamper-evident feature remains consistent across cavities.
