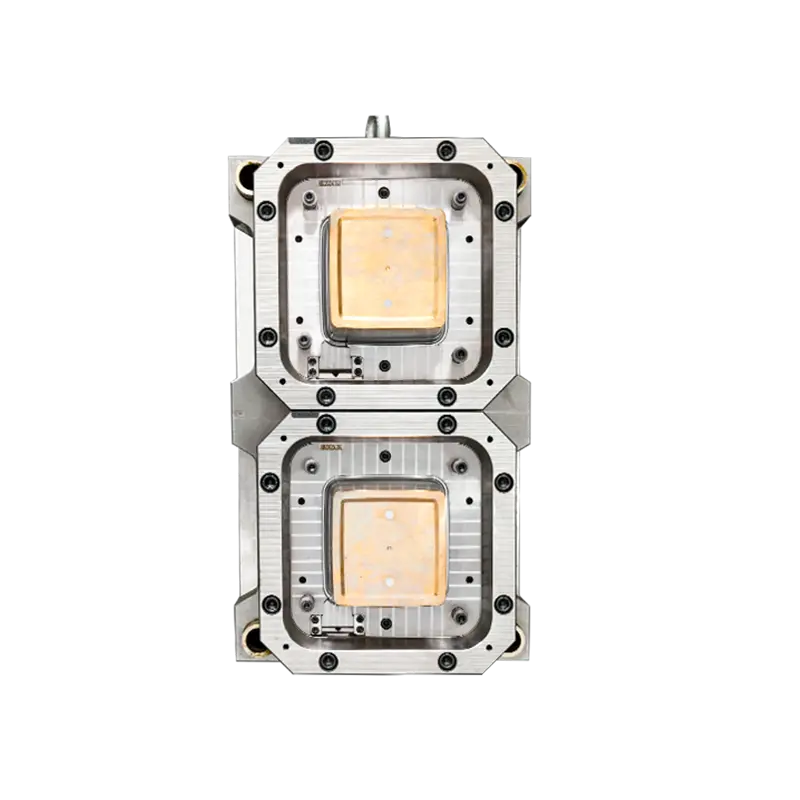

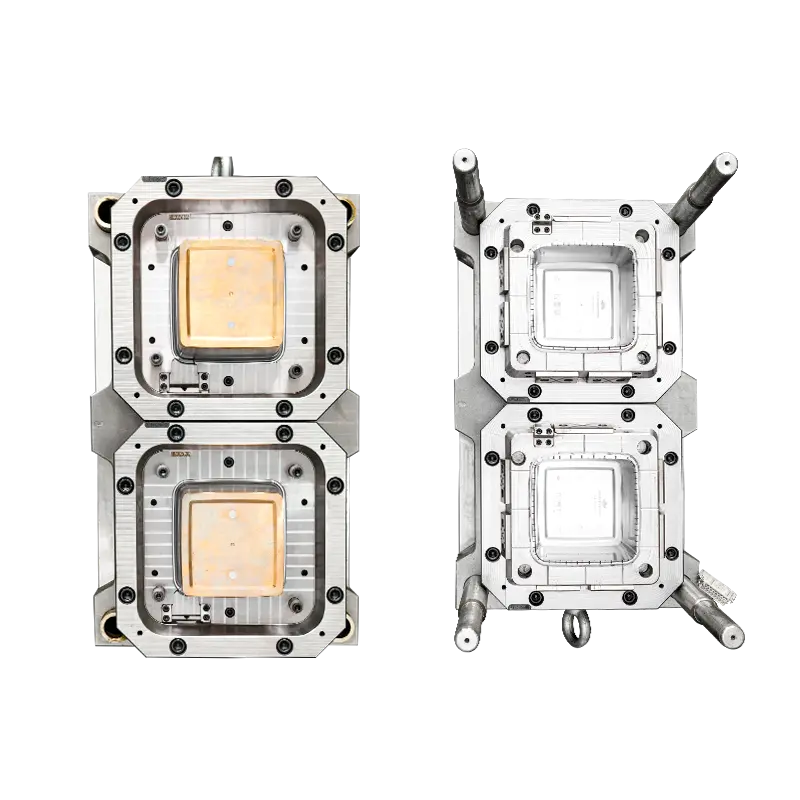

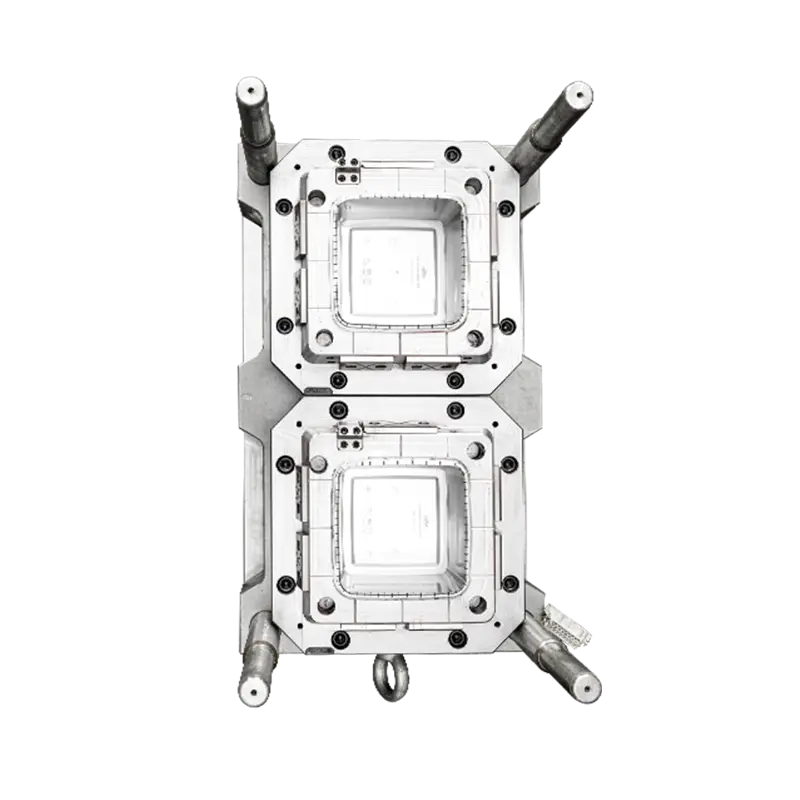

2CAV anti-theft square box mould for tamper-evident food containers, with IML support and anti-reuse buckle structure. The tooling is matched with a 350T high-speed machine and targets cycle time within 7.5 seconds depending on material, wall thickness and automation conditions.
Typical product
Tamper-evident square takeaway box, ready-meal container, anti-reuse food packaging
Machine matching
350T high-speed injection molding machine
Cycle time target
Within 7.5 seconds per shot under suitable production conditions
Structure feature
Anti-theft buckle design to provide tamper-evident opening indication
Label compatibility
Supports in-mold labeling (IML) for brand graphics and product traceability
Number of holes
Match by model
Review the route from drawing and DFM through steel, trial and acceptance.
View evidenceSee how runner, gate and cavity balance are evaluated for repeatable filling.
View evidenceConnect product tolerances with CNC, EDM, inserts and component control.
View evidenceUnderstand dimensional verification and the inspection evidence available.
View evidenceHengqi proof system
Buyers do not evaluate the product concept alone. They also need evidence that the supplier can design, machine, measure, trial and support the mould through production acceptance.
60days
A controlled route from DFM and design approval through machining, trial, correction and acceptance.
3μm
Precision inspection supports dimensional verification for inserts, cores, cavities and critical interfaces.
60+
Engineering, machining, assembly, trial and project support are connected throughout the tooling programme.
300
Production and support resources cover mould development, manufacturing, inspection and after-sales response.
Hot runner and multi-cavity flow balance are reviewed around the real product and output target.
CNC, EDM, component fitting and CMM inspection are connected through the same manufacturing route.
Engineering support continues from drawing review and trial correction to production and after-sales response.
01 / Engineering review
Product geometry, resin, machine, cycle, lid or label and automation are reviewed as one system. The sections below explain the project-specific decisions buyers should confirm before steel is released.
Engineering checkpoint 01
This 2CAV anti-theft square box mould is designed for food containers that need tamper-evident opening behavior during retail, takeaway and delivery handling.
The anti-theft buckle structure helps prevent box reuse and gives end users a clear opening signal, which supports hygiene control and brand trust.
Engineering checkpoint 02
For tamper-evident packaging, buckle geometry, opening force, wall thickness and lid fit tolerance must be reviewed together to avoid false locks or weak seals.
Hengqi can evaluate sample drawings, resin type, output target and automation method to confirm cavity layout, hot runner design, steel selection and cycle expectations.
Engineering checkpoint 03
Anti-theft square box projects should define the first-open signal, buckle break behavior, lid matching tolerance and stacking requirement before mold construction begins.
If the package will use IML, the label area, robot clearance, static control and take-out path should be reviewed with the mould design because these details affect production stability as much as the container shape.
A stronger technical brief helps buyers compare suppliers beyond headline price, especially on buckle durability, sample validation speed, spare-part planning and long-run service support.
02 / Tooling specification
These values describe the current reference project. Final steel, cavity count, runner, machine and cycle target are confirmed from the customer product and production plan.
Typical product
Tamper-evident square takeaway box, ready-meal container, anti-reuse food packaging
Machine matching
350T high-speed injection molding machine
Cycle time target
Within 7.5 seconds per shot under suitable production conditions
Structure feature
Anti-theft buckle design to provide tamper-evident opening indication
Label compatibility
Supports in-mold labeling (IML) for brand graphics and product traceability
Number of holes
Match by model
Front and rear mold material
Domestic 2344/s136
Mold base material
P20/4Cr13/Customer specified
Runner
Needle Valve/Needle Point Hot Runner
Customization
Box dimensions, buckle strength, lid fit, wall thickness and logo area
03 / Before shipment
The exact checklist is agreed for each project. These are the core records buyers normally use to confirm dimensions, function, output and correction closure before shipment.
View inspection processRecord the trial setup, resin, machine, process window, visible defects and required corrections.
Verify critical product and tooling dimensions against the approved drawing and agreed tolerances.
Check shot-to-shot consistency, thin-wall distribution and deformation risk across representative samples.
Review closure engagement, rim flatness, leak risk, opening force and stacking where the product requires it.
Confirm the practical cycle target under suitable resin, cooling, machine and automation conditions.
Provide agreed samples, trial video, inspection results and correction records for customer confirmation.
04 / Quotation checklist
A drawing or sample is the starting point. Machine, resin, output, closure and acceptance details allow Hengqi to review cavity layout, steel, runner, cooling and automation with fewer assumptions.
Product drawing or physical sample
Capacity, dimensions and target part weight
Resin grade and food-contact requirement
Target cavity number and annual output
Injection machine model and tonnage
Expected cycle time and automation plan
Matching lid, label or sealing requirement
Acceptance standard and delivery schedule
Send your drawing, sample photos and production target. Hengqi will review the project scope before preparing the quotation.
Start WhatsApp review Send formal inquiry05 / Buyer questions
It creates tamper-evident opening behavior, helping distributors and end users identify whether the container has been opened or reused.
Yes. The mould supports in-mold labeling and Hengqi can align label position with your box artwork and structural design.
Please share box and lid drawings or samples, resin type, cavity target, machine tonnage, cycle expectation and monthly output plan.
Sampling should check buckle break force, lid sealing fit, stacking stability, IML label position if used, drop behavior and whether the first-open signal is clear to the end user.
